Basic Info.
Model NO.
JR-ZKBTPL-240
Lamp Body Material
Aluminum Alloy
Power
100W
Application
Square, Garden, Parking Lot, Underpass, Tunnel
IP Rating
IP65
Certification
CE, EMC, ETL, FCC, GS, RoHS, SAA
Input Voltage
100-240V
With Light Source
With Light Source
LED Chips Brand
Brand Chip with Upcharge
Power Factor
0.9
Voltage Ranging
100-277V
Dimming
0-10V
Driver Solution
Isolated/Non-Isolated
Detachable
Yes
Efficiency
130lm/W
Ik Rating
Ik10
Transport Package
Carton
Specification
L*W*H: 2400mm*90mm*77mm
Trademark
Zuiki
Origin
Zhongshan, China
HS Code
9405409000
Production Capacity
100, 000pieces/Year
Product Description

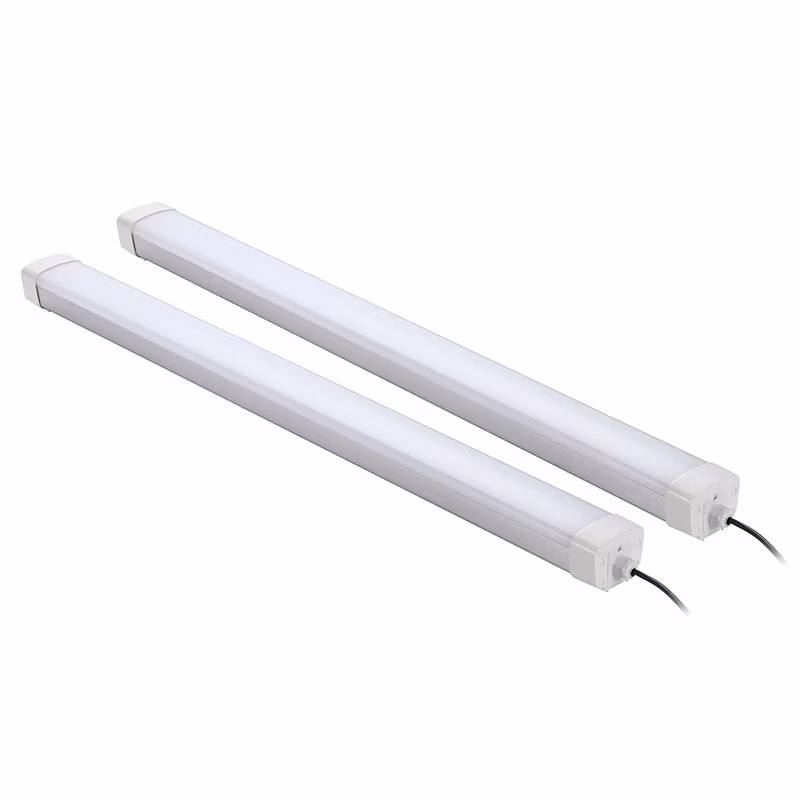

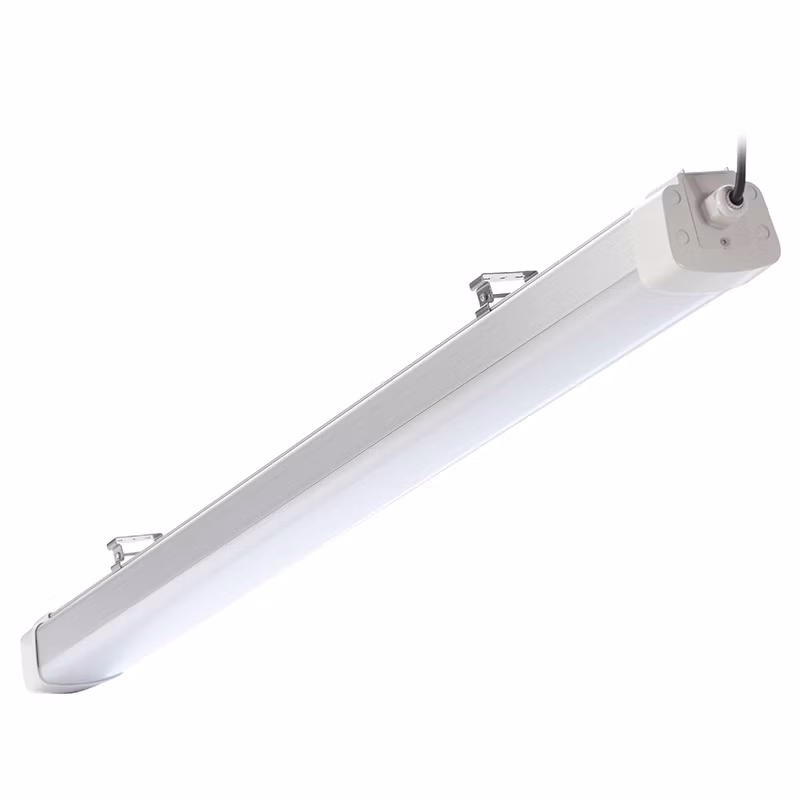

High Lumens LED Tri-proof Light 8FT 2400mm 4FT 1200mm
Basic Info.
| Item Type | JR-ZKBTPL-120 | JR-ZKBTPL-240 |
| Lamp Size | 4ft, 1200mm*90mm*77mm | 8ft, 2400mm*90mm*77mm |
| Input Voltage | AC220~240V ; AC120V; | AC220~240V ; AC120V; |
| Input Power | 40W | 60W(Optional for 120W) |
| LED Chip | SMD 2835 | SMD 2835 |
| Luminous Per Watt | 130LM/W | 130LM/W |
| Dimming | 0-10V | 0-10V |
| Protection Level | IP65 | IP65 |
| CCT (single) | 3000K/4000K/6000K | 3000K/4000K/6000K |
| Power Factor | 0.9 | 0.9 |
| CRI (Ra) | 80 | 80 |
| Units per Carton(pieces) | 9 | 6 |
| Carton Dimension (cm) | 128*27*26 | 248*27*18 |
| Price (MOQ1000) | USD21.56 | USD43.92 |
Product Description
· Design for T8 fluorescent fitting· 1-10V dimming /Detachable Structure· End or rear cable entry· Multiple Link through end hole. Can Link from both ends. 5 years warranty
• Options
· Function : ON-OFF / 1-10V dimming· PIR Sensor : With sensor or W/O sensor· Installation : Surface mounting OR Suspension
• Application
· Parking, Under Passing, Subway, Car Beauty, Mine, Tunnel,Park.
Packaging & Delivery:
Packaging Detail: 1piece in one box, 9/12 pieces per carton;
Delivery Detail: 10-15 work days for sample, 25-30 work days for 1000 pieces.
Term of Trade:
FOB ZhongShan
Certification:
CCC, CE, RoHS, ETL
Product Testing:
Packing &Loading:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Quick delivery time 3-5 working days for sample order, 12-20 working days for bulk orders.
The actual delivery time depends on order quantities and production plans.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea, DHL, UPS, FedEx also optional, It usually takes 3-10 days to arrive.
Q5. How to proceed with an order for led light?
Step 1: Let us know your requirements or application.
Step 2: We offer quotations or solutions for you according to your requirements.
Step 3: You confirm the order and place deposit for formal order.
Step 4: We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you accept customized?
A: Yes, we accept customized. OEM/ODM service is available. For more solutions please contact us.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
